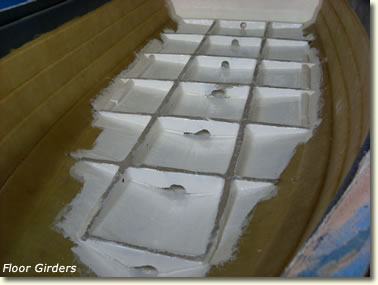

Floor Girders Tactile Boats

Tactile Specifications

The 21 Tactile & 19 Tactile are fast commercial fishing vessels.

The hull is manufactured with aft engine well, glassfibre matrix floor girders, marine plywood & glassfibre sealed floor.

Gunwales are made from marine ply encapsulated with glassfibre. The foredeck (whaleback) & bulkhead create a dry locker. These items are fabricated before the hull is extracted from the mould tool. This constitutes a classic boat.

Dimensions:

  Tactile 21 Tactile 19
Length 6,400mm 5,860mm
Beam 2,200mm 2,200mm
Freeboard 800mm 800mm
Floor to gunwale 900mm 900mm
Working area 6 square metres 4.75 square metres
Keel to water line (unladen) 250mm 250mm
Dry weight Approx 425kg Approx 350kg



Power Unit:
Tactile 21:
40/50/60/70hp engines have all been used as a single engine set up. Our recommendations would be 60hp 4 stroke as an all around.

Tactile 19:
The 19s have had up to 60hp.

All boats are tailor made to suit the customer's requirements and the quotes below are for a basic boat only. I can show you a selection of layouts to give you an idea of what can be achieved.

The basic price for a Tactile 21 is £9,750 Ex Works.
The basic price for a Tactile 19 is £9,500 Ex Works.

Some examples of optional extras include:

  • Stainless steel keel band
  • Stainless steel hauler post
  • Hauler table to suit sea winch compact or like
  • Steering console
  • Service tubes
  • Spray screen
